介紹中空玻璃打膠機怎么操作！
關于中空玻璃主動打膠機小編現已和我們說了很多，比如關于職業額發展、整體的現狀，還有和中空玻璃相關職業的知識等等?？墒切【幇l現很多的讀者在私信小編時問的都是有關于中空玻璃主動打膠機的根底操作等相關問題。今天小編就和我們清清楚楚的說清楚關于中空玻璃主動打膠機的調整與操作的問題。
We have talked a lot about the small edition of the active gluing machine for hollow glass, such as the professional development, the overall status quo, as well as the knowledge of hollow glass related professions and so on. However, Xiaobian found that many readers in private trust Xiaobian asked about the basic operation of the hollow glass active gluing machine and other related issues. Today, Xiaobian and we clearly explained the adjustment and operation of the active gluing machine for hollow glass.

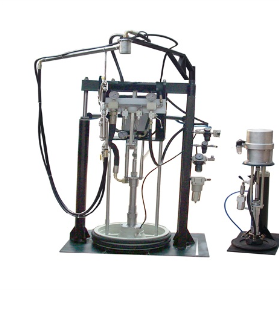

中空玻璃主動打膠機
Hollow glass active glue machine
操作流程：
Operation procedure:
1、 放在一個平整潔凈的平面上，連接電源和氣源，兩者承認接通之后就開始進行操作。
1. Place it on a flat and clean surface, connect the power supply and the air source, both of which admit to start operation after the connection.
2、 打膠機中間會有一個混膠過程，在供膠機上面混膠完畢之后，需要在電子顯示屏上控制面板上進行挑選“行走設置”。翻開界面之后按T1鍵前進行走。在機頭中止時，翻開機頭上面B膠閥門，接著在控制面板上找到Esc鍵回來主界面，然后F2狀態設置，在翻開界面后按K3鍵供膠開始，當膠嘴中完全混合的膠流出按K4鍵完畢供膠。
2. There will be a mixing process in the middle of the glue beater. After mixing is finished on the glue feeder, it is necessary to select "walking settings" on the control panel of the electronic display screen. After opening the interface, press T1 button to move forward. When the nose stops, turn on the B glue valve above the nose, then find the Esc key on the control panel to return to the main interface, then set F2 status, press K3 key to start gluing after opening the interface, and press K4 key to finish gluing when the completely mixed glue in the nozzle flows out.
3、 需要記住的是工作完畢之后或者在較長時間不工作時，需要沖洗混膠裝置，避免供膠管的阻塞，影響未來運用作用。
3. It should be remembered that after the completion of the work or after a long period of non-work, it is necessary to flush the mixing device to avoid the obstruction of the rubber supply pipe, which will affect the future application.
4、 調整環節：吸盤調整：涂膠機吸盤與旋轉臺的高度調整合適。
4, adjustment link: sucker adjustment: the height adjustment of the suction machine and the rotary table of the glue dispenser is suitable.
5、 氣動開關、膠嘴、探針調整：將事前合好的中空玻璃放在旋轉臺上，靠近涂膠機工作面，然后中空玻璃推到定位上，調整膠嘴與玻璃的高度，使出膠嘴的出膠口中心于鋁槽中心在同一個水平線上：膠嘴與玻璃之間的頂力合適：鋁槽深度檢測探針與出膠口中心線在統一水平線上。
5. Pneumatic switch, glue nozzle and probe adjustment: place the hollow glass on the rotary table, close to the working face of the glue coating machine, then push the hollow glass to the position, adjust the height of the glue nozzle and the glass, so that the glue outlet center of the glue nozzle is on the same horizontal line at the center of the aluminium groove: the top force between the glue nozzle and the glass is appropriate. The depth probe of aluminum groove and the center line of the rubber outlet are at the same level.
6、 發動開關（機頭的前端的光開關）與玻璃之間的檢測間隔（1.5~2mm）。在控制面板上挑選“狀態設置”，翻開狀態設置后挑選“吸盤開（K5鍵）”，此時機頭會往前移動，假如不往前移動則檢查并調整發動開關的檢測間隔。
6, the detection interval (1.5~2mm) between the starting switch (the optical switch at the front end of the nose) and the glass. Select "state setting" on the control panel and "sucker opening" (K5 key) after turning on the state setting. At this time, the nose will move forward. If it does not move forward, check and adjust the detection interval of the start switch.
